Ball Lock Disconnect Spund Valve G2

Ball Lock Disconnect Spund Valve G2

This easy to use and compact Spunding valve is handy for keg transfers or pressurized fermentations when you want to limit oxygen exposure and use counter pressure in the keg you are filling into or in the fermenter you are using.

This new improved G2 model has several upgrades:

1. duotight fitting where the gauge attaches
- This allows for a multitude of different options such as digital gauge or larger gauge to be purchased separately and upgraded.

2. Manual ring pull pressure relief
- This allows for you to not only adjust the pressure with the black rotary knob but also use the ring pull to instantly release pressure if you want to release manually.

3. Option for Several Colour Coded PRVs to be used
KL22569 - Yellow - 1.2bar (17psi)
KL05333 - Red - 2.5bar (35psi)
KL09164 - Green - 4.5bar (65psi)
KL03070 - Grey - 7bar (100psi)

This is a low profile opton only 4.5cm in height.  This spunding valve fits to standard gas posts on your fermenter or keg.

It works right out of the box but has several upgrade options as shown in the images.

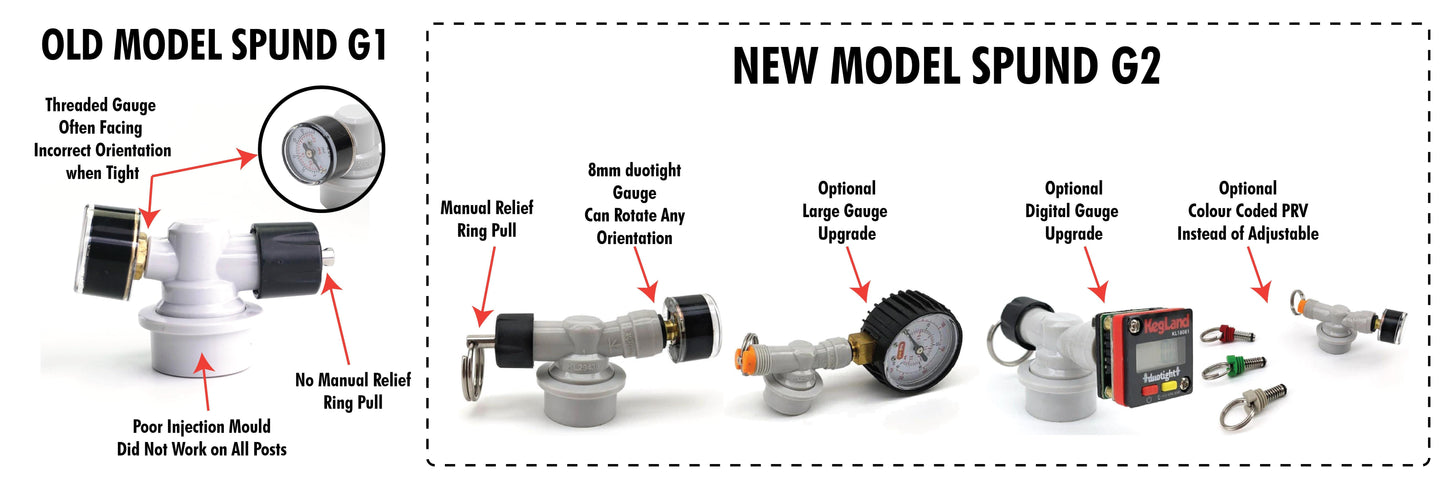

This new Spund G2 is better designed than the older Spund G1 model.  As you can see below the older Spund G1 had a threaded gauge that was often in the incorrect orientation, had no manual pressure relief and also the injection molding was poor and did not work on all keg posts.  For this reason the Spund G1 was discontinued very soon after it was sold and the G2 model has been released:

Want Higher Accuracy?
If you are looing for higher accuracy then we would recommend that you go with a diaphragm spunding valve such as the Blowtie:

A video on the blowtie spunding valve can be seen below:
