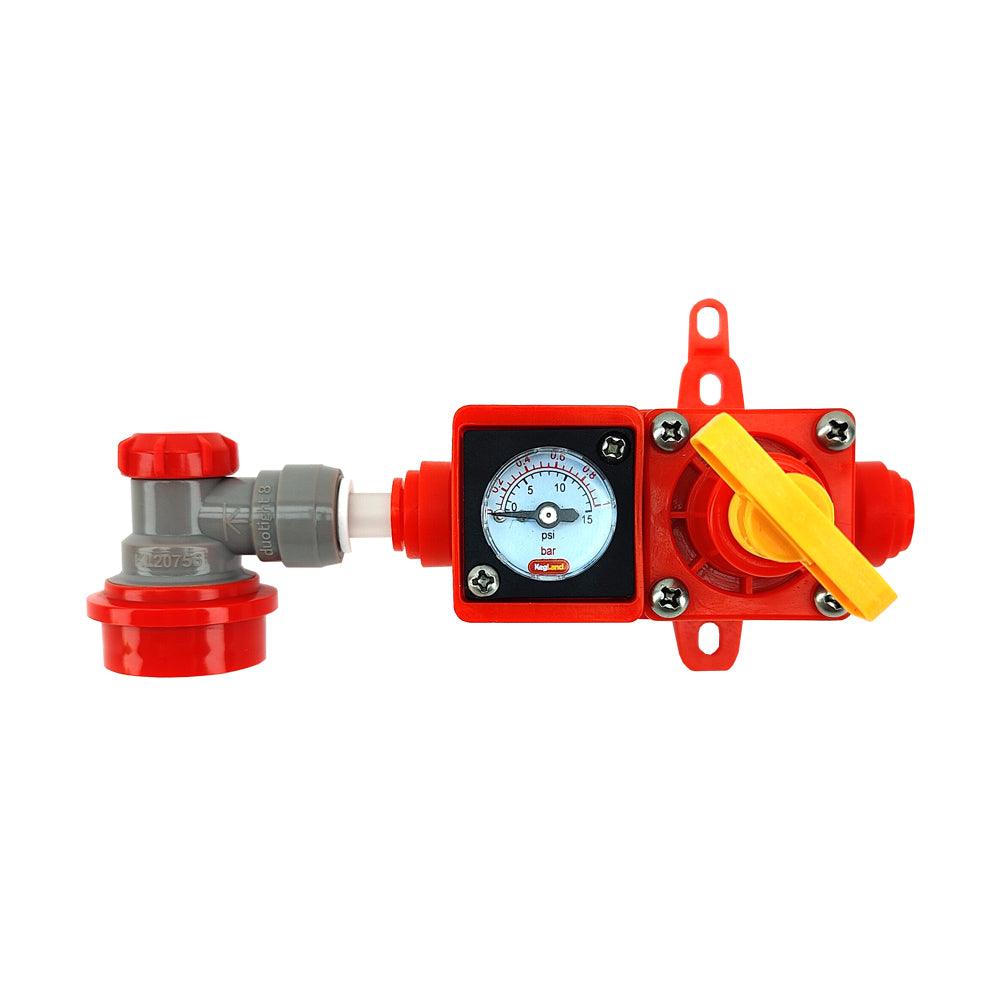

Integrated Gauge BlowTie Kit (0-15psi)

Integrated Gauge BlowTie Kit (0-15psi)

Now updated with the all new duotight 8mm Ball Lock Disconnect (Grey+Red/Gas)

This kit has been designed for simplicity and ease of putting together.

This Kit Contains:
1 x KL15042 BlowTie Spunding Valve Gen 2 with 0-15psi Integrated Gauge
1 x KL20756 duotight 8mm (5/16") x Ball Lock Disconnect (Grey+ Red/Gas)
1 x KL18012 Rigid 8mm Plastic Joiner

All new compact BlowTie Spunding Valve Gen2 Integrated Kit. If you want to control the pressure retained in a pressure vessel that is releasing pressure then the BlowTie Diaphram Spunding Valve is the tool for the job.

If you want to control the pressure retained in a pressure vessel that is releasing pressure then the BlowTie Diaphram Spunding Valve is the tool for the job.

The adjustment knob on the top of the unit makes it easy to increase and decrease the set pressure.

This BlowTie unit can be easily disassembled for cleaning using a Phillips head screw driver.

Designed to suit 8mm (5/16") Evabarrier Tubing. It's compatible with both the 4mm ID Tubing here or 5mm ID here.

Specifications:
1. Suits pressures 0-15psi (but with different gauges the unit can go above 100psi)
2. Made from food-grade acetal
3. Stainless screws
4. 8mm (5/16") push on both sides

This video will give  you some information on how the Blowtie 2 works and how to mount it.  The video also covers the inline regualtor at the same time.  The inline requlator can be purchased here.

We have a video on the Blowtie 1 unit here below.  The product is the predecessor but it will help to give you an idea how this product works:

If you would like to know how this spunding valve differs from other spring type spunding valves then you can see the videos below:

If you are looking for a compact digital gauge with backlight illumination click here. This should only be used on a blowtie if you have excess tubing to stop liquid reaching the gauge. If liquid enters the digital gauge it will break.
