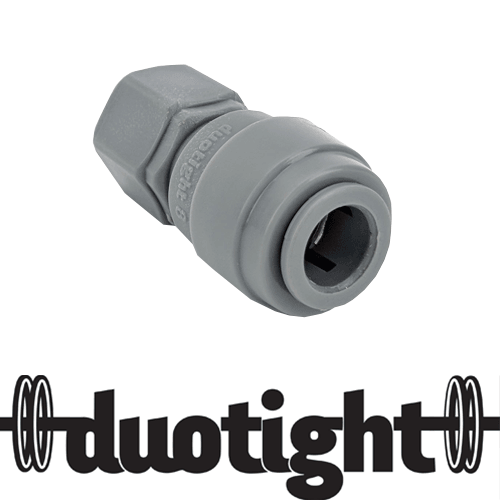

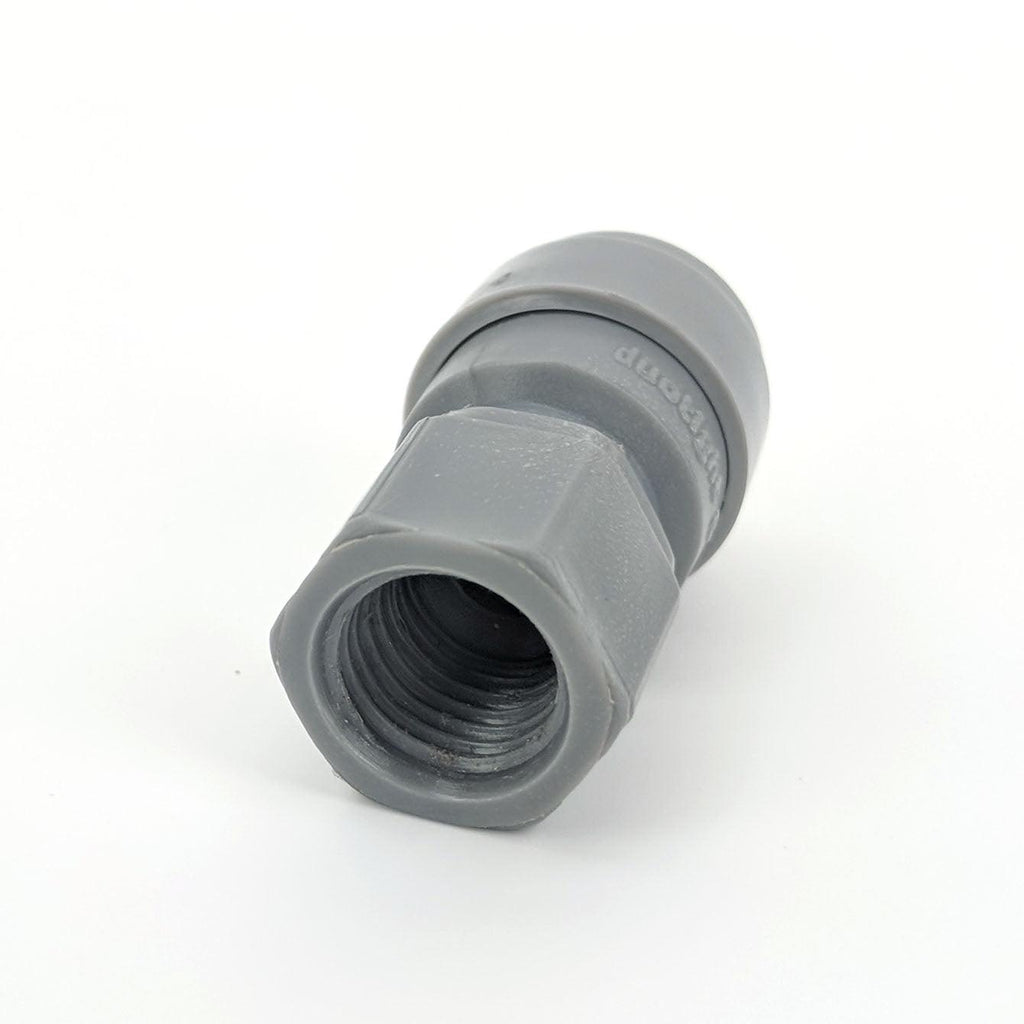

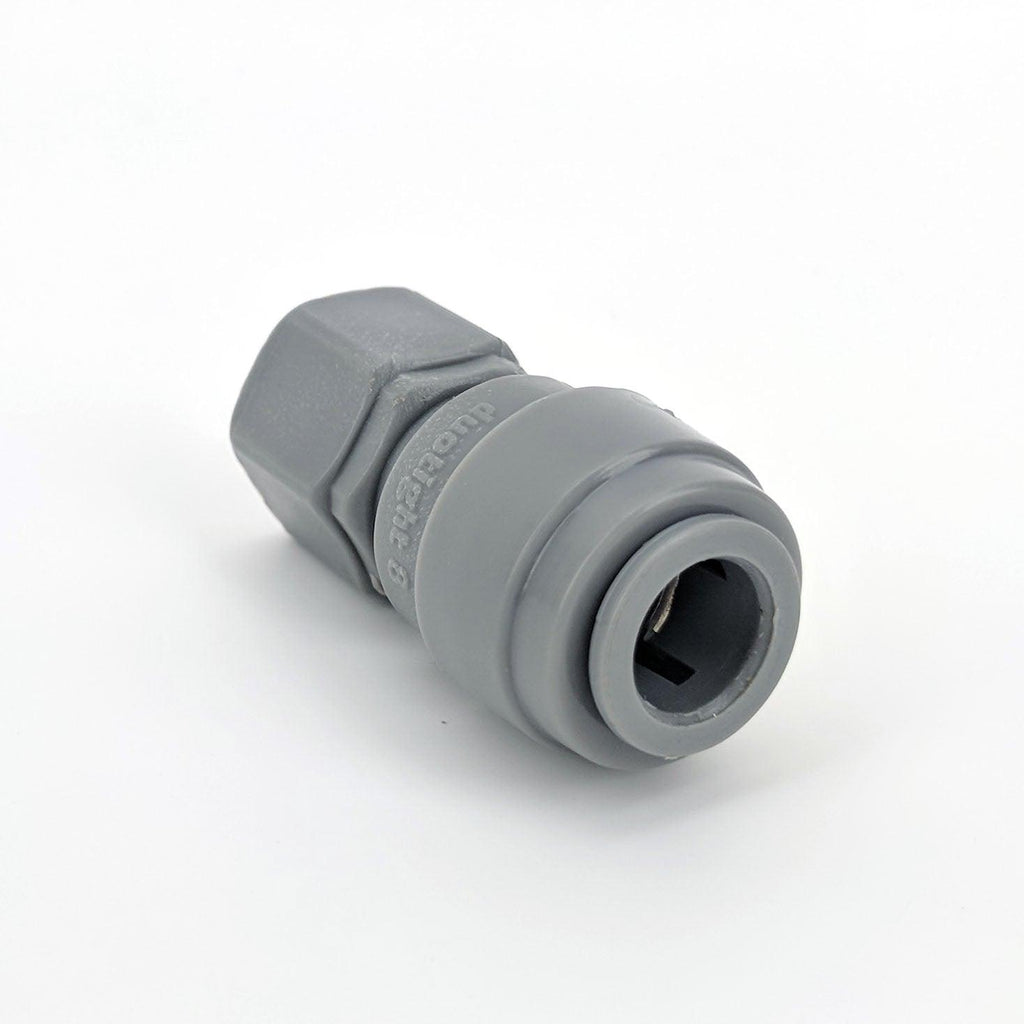

duotight – 8mm (5/16”) Female x FFL Female Thread (to fit MFL Disconnects)

Looking for high quaility push in fittings that will seal tight?  duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.

Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM o-rings but also use two of them.  The double o-ring means we literally have twice the sealing surface surface when compared with other push in fittings.  This makes our fittings even more reliable and reduces the chance of a leak significantly.

The double o-ring system also means that we can bend the hose with much tighter radius without causing leaking issues.  This typically can be an issue with other fittings.  This combination of factors makes duotight fittings the most reliable push fit fittings on the market.

Compatible with our
- EVABarrier 4mm ID x 8mm OD line
- EVABarrier 5mm ID x 8mm OD line
Not compatible with 6mm ID x 10mm OD line

duotight - 8mm x FFL (to fit MFL Disconnects - 7/16" - 20UNF, 1/4 SAE)

duotight 1.10 Design Revision

The thread on this fitting will suit:

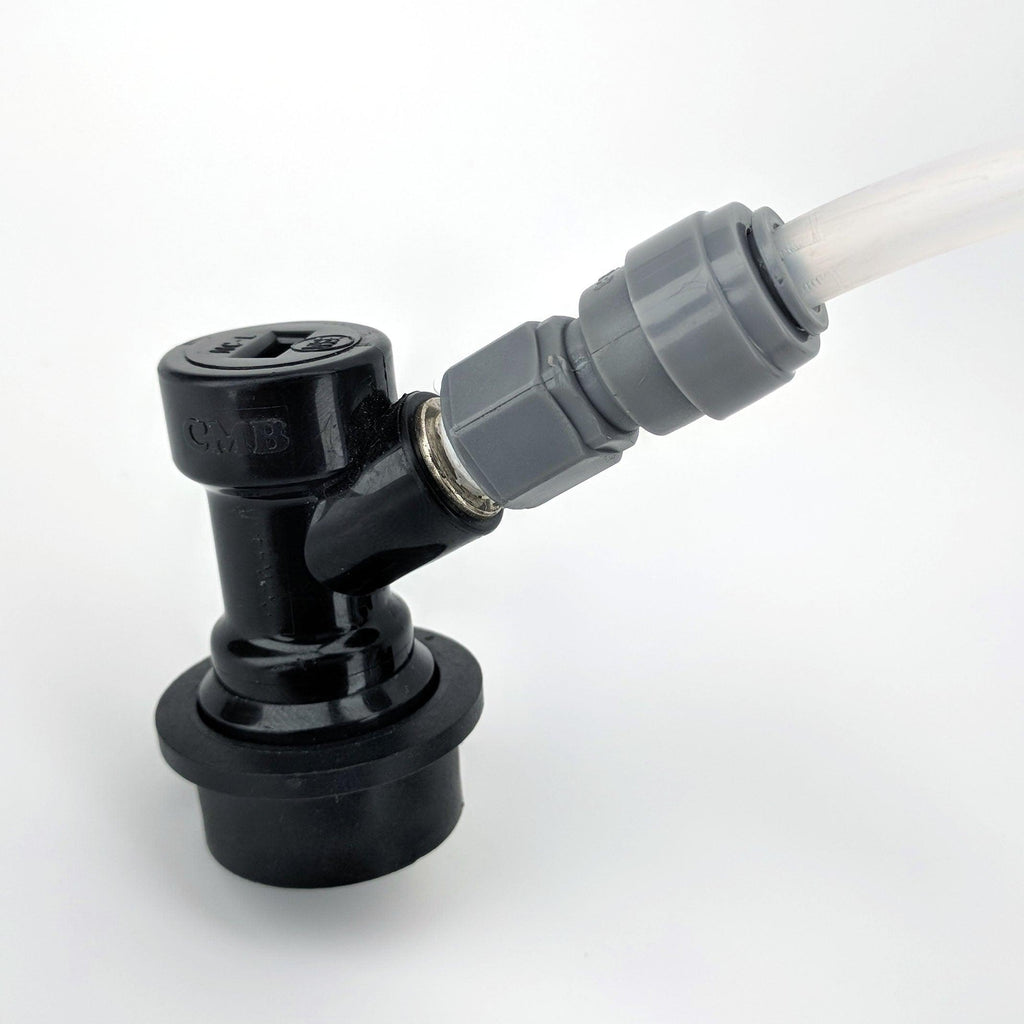

MFL Ball Lock and Pin Lock Disconnects

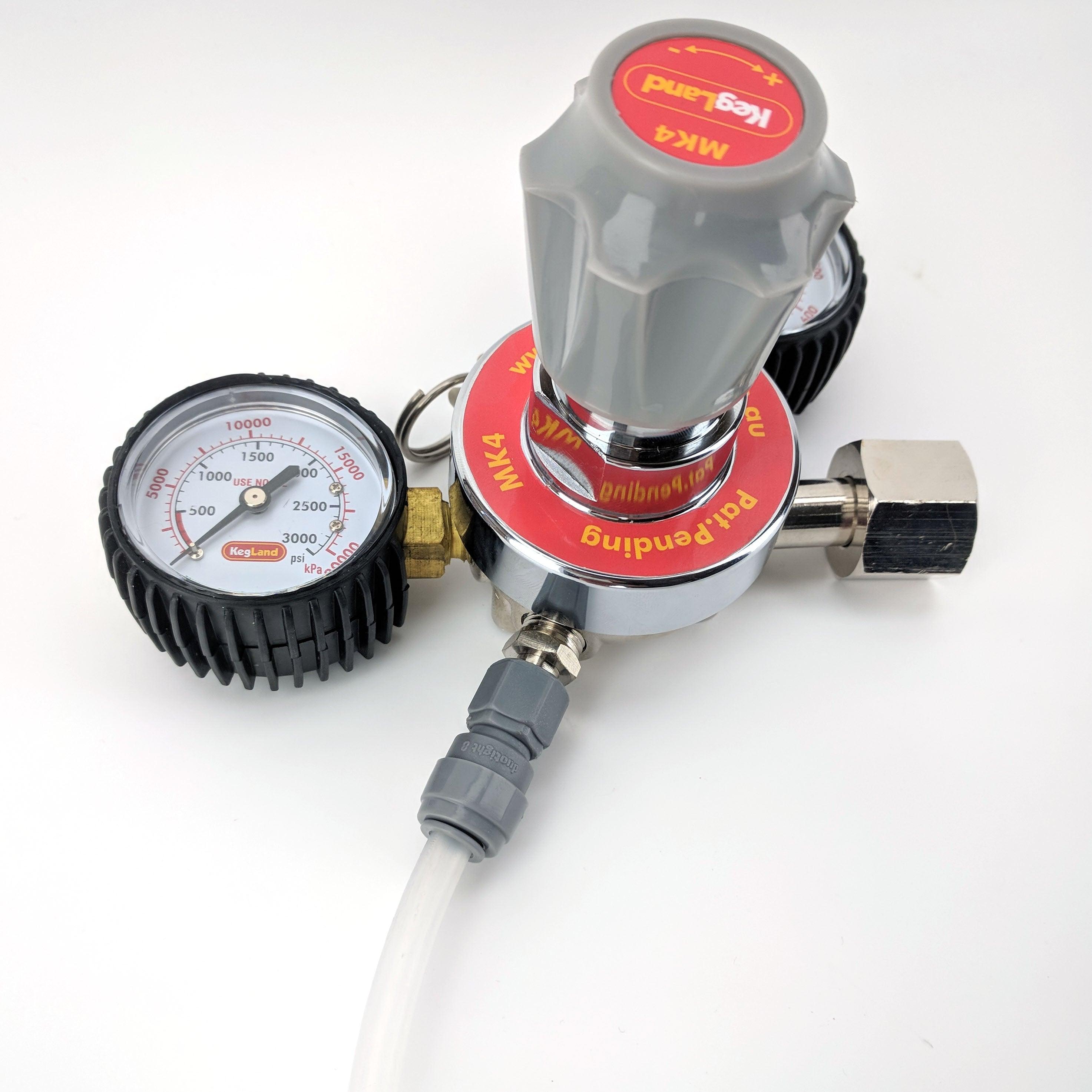

Our MKIII and MK4 Regulators
Many other home brew fittings with MFL Thread

It will not fit the 10mm OD EVABarrier line (with 6mm ID) but we do sell these larger 10mm duotight fittings separately.

No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed. These push in fittings are suitable to be used up to 100 psi

These push in fittings have been engineered for maximised performance in both gas and liquid applications. Compared to other push in fittings on the market, duotight takes the double safety approach to all of the connections with two EPDM o-rings per hose port. No other push ins on the market have EPDM o-rings, let alone two! per push in connection.

What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds.   When compared with silicon and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.

 Need further instructions?

We have made an instruction sheet to make it really easy for you to determine the sufficient "tightness" when attaching this fitting to a ball lock disconnect or regulator.  For informatoin regarding this please have a look at this PDF here.
