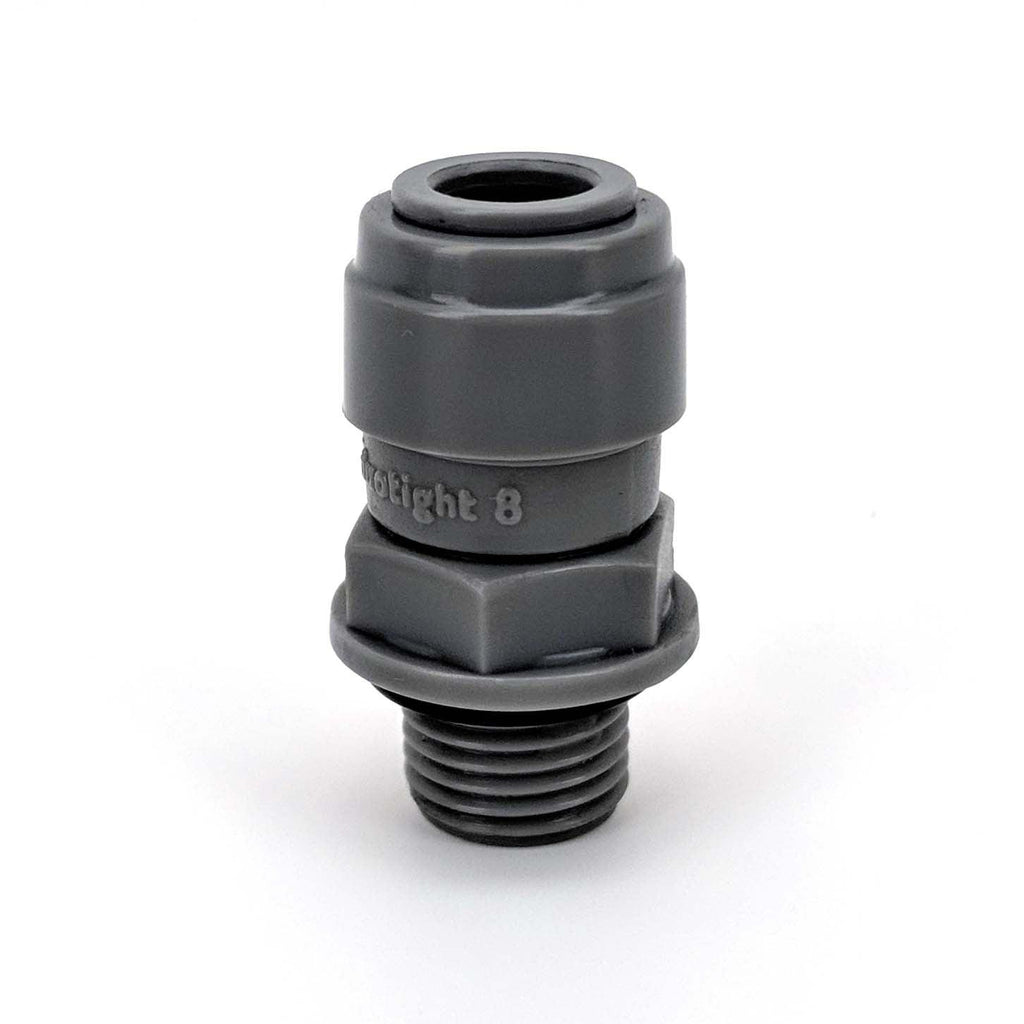

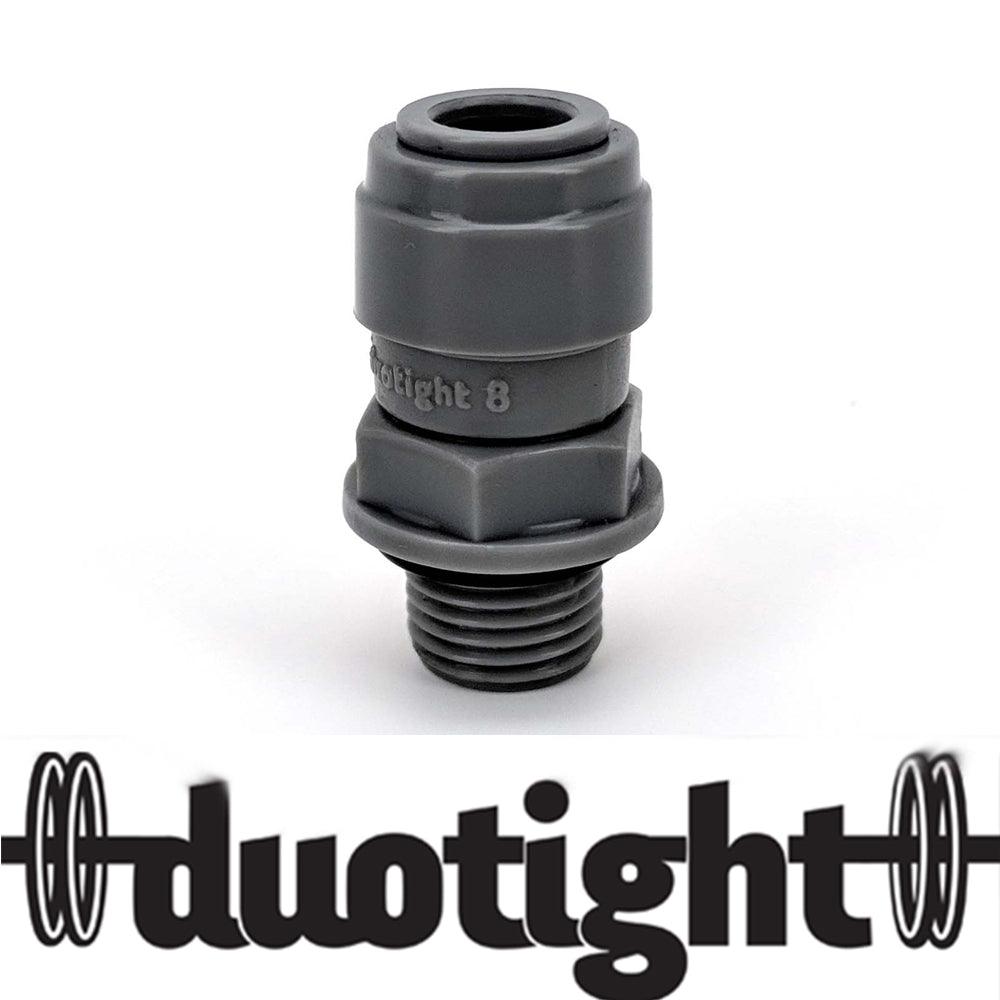

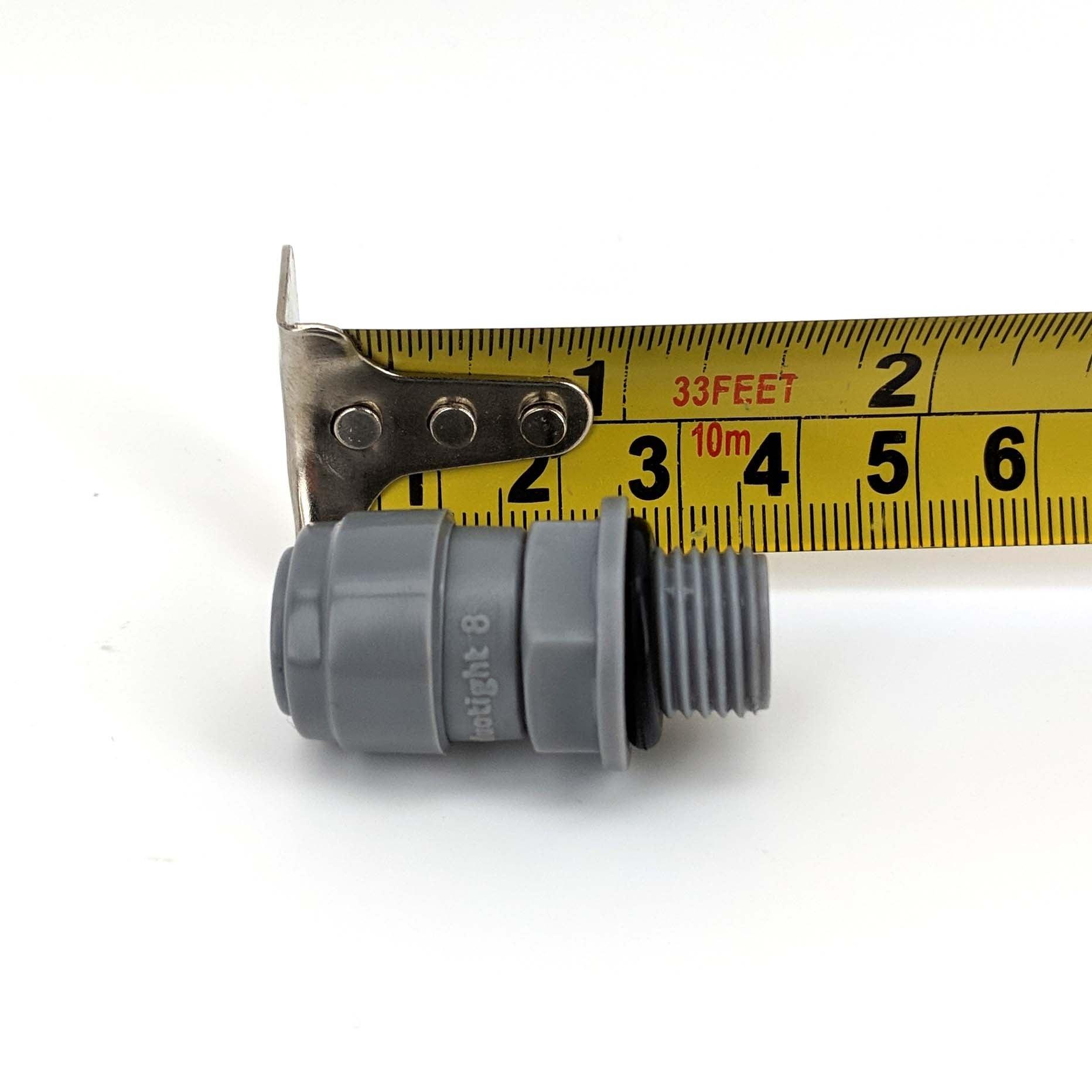

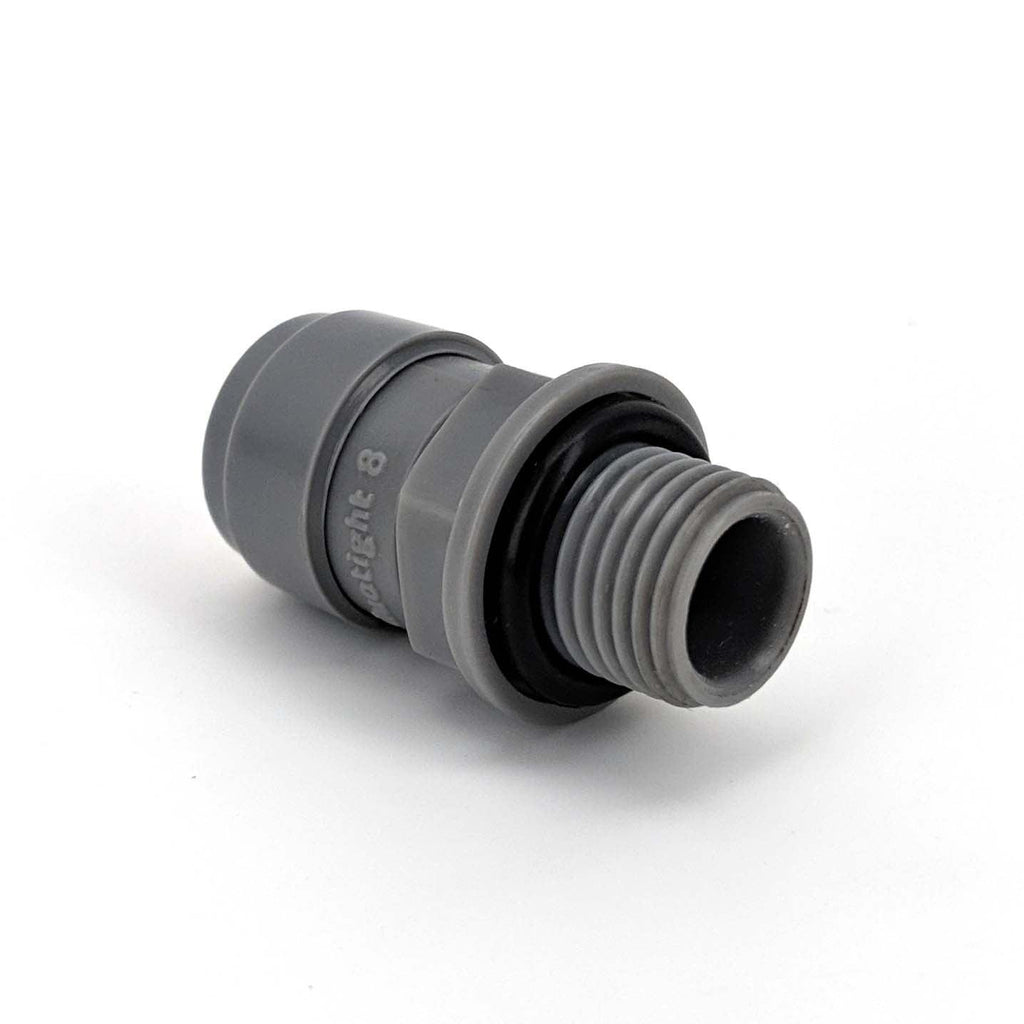

duotight – 8mm (5/16”) Female x 1/4 Inch BSP Male Thread (With Seated O-Ring)

duotight – 8mm (5/16”) Female x 1/4 Inch BSP Male Thread (With Seated O-Ring)

Please Note: This is not a replacement thermowell bulkhead for the 60cm Thermowell. This fitting is designed to stop the hose from being pushed in all the way.

Looking for high quaility push in fittings that will seal tight?  Duotight are the push in fitting with superior sealing capacity due to the double o-ring sealing design.

Why do we use Double O-rings?
The secret to our superior sealing performance is not just the fact that we use high quality EPDM o-rings but also use two of them.  The double o-ring means we literally have twice the sealing surface surface when compared with other push in fittings.  This makes our fittings even more reliable and reduces the chance of a leak significantly.

The double o-ring system also means that we can bend the hose with much tighter radius without causing leaking issues.  This typically can be an issue with other fittings.  This combination of factors makes duotight fittings the most reliable push fit fittings on the market.

Compatible with our
EVAbarrier 4mm x 8mm hose (12m rolls)
EVAbarrier 5mm x 8mm hose (12m rolls)

This handy small duotight to 1/4 BSP threaded piece is really handy for many of gas fittings that we sell in particular.  The 1/4 inch thread fits into the regulator body, the manifolds that we sell and many other fittings that often use 1/4inch thread.

duotight 1.10 Design Revision

No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed. These push in fittings are suitable to be used up to 100 psi

These push in fittings have been engineered for maximised performance in both gas and liquid applications. Compared to other push in fittings on the market, duotight takes the double safety approach to all of the connections with two EPDM o-rings per hose port. No other push ins on the market have EPDM o-rings, let alone two! per push in connection.

What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds.   When compared with silicon and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.
