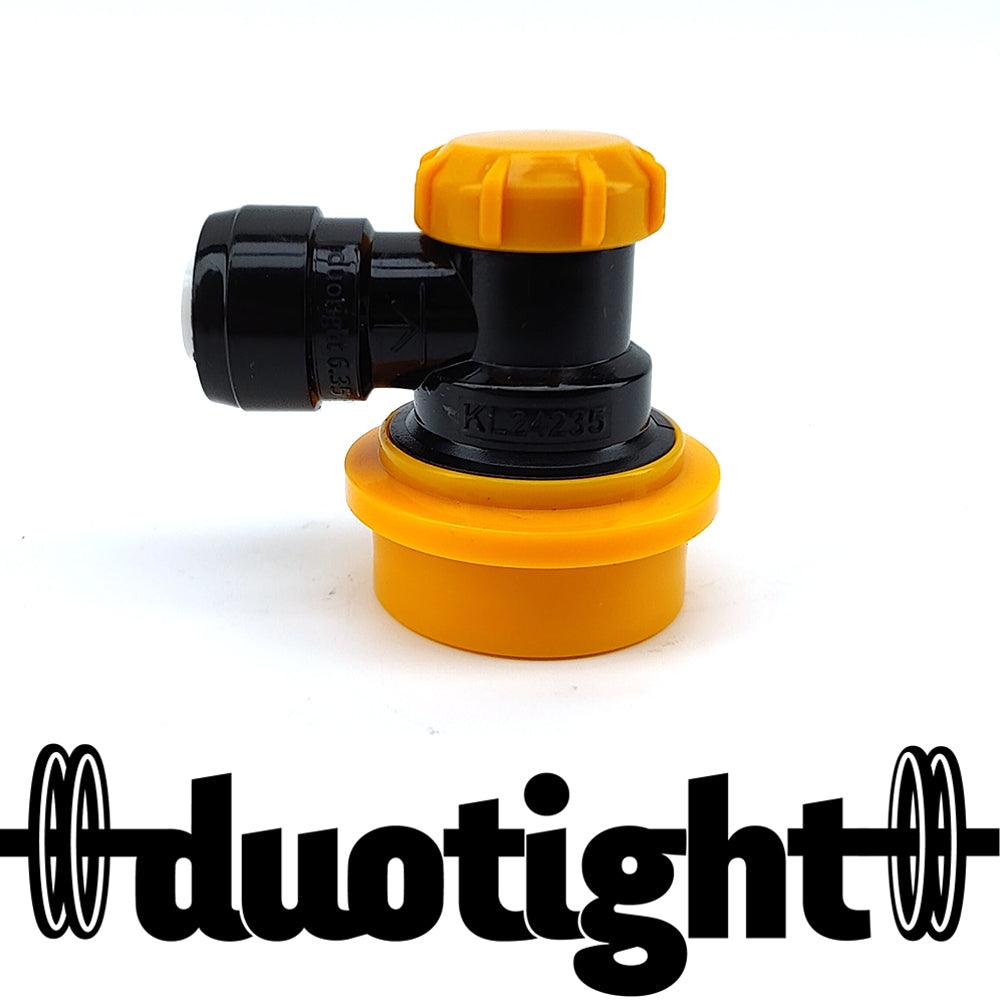

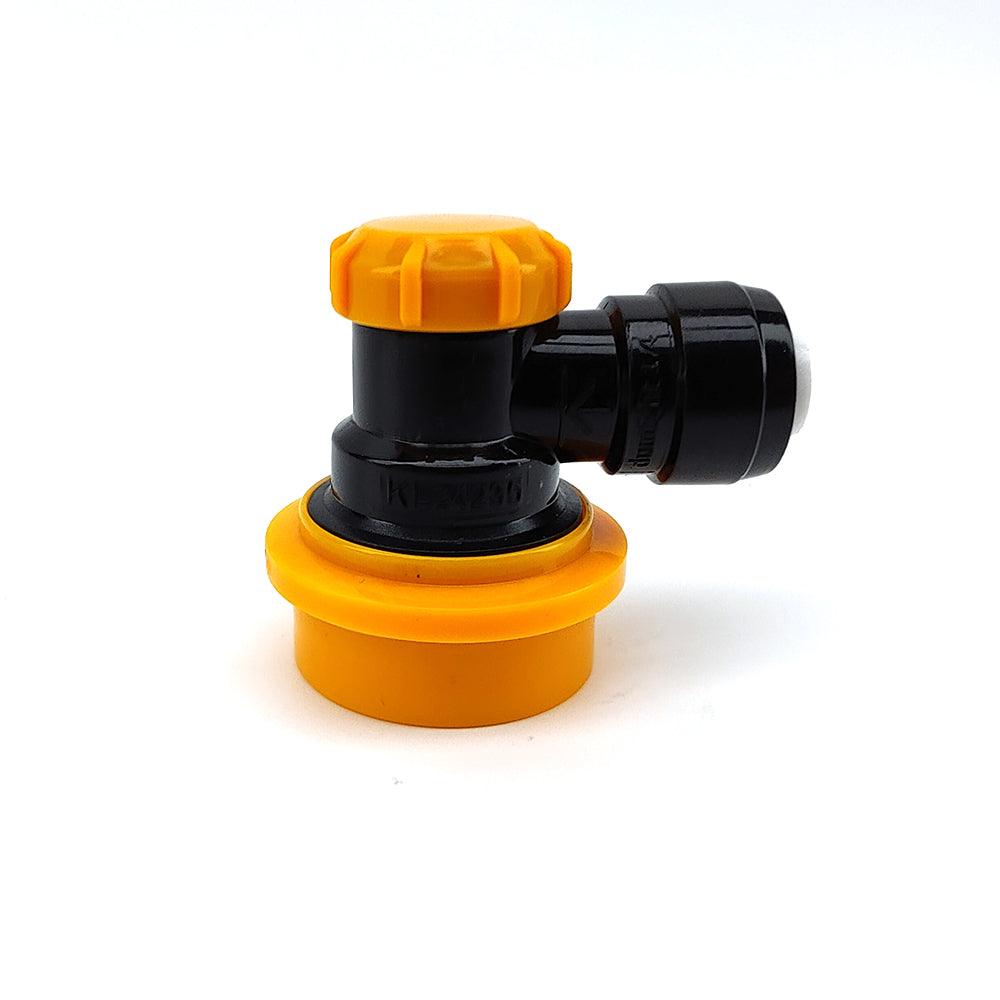

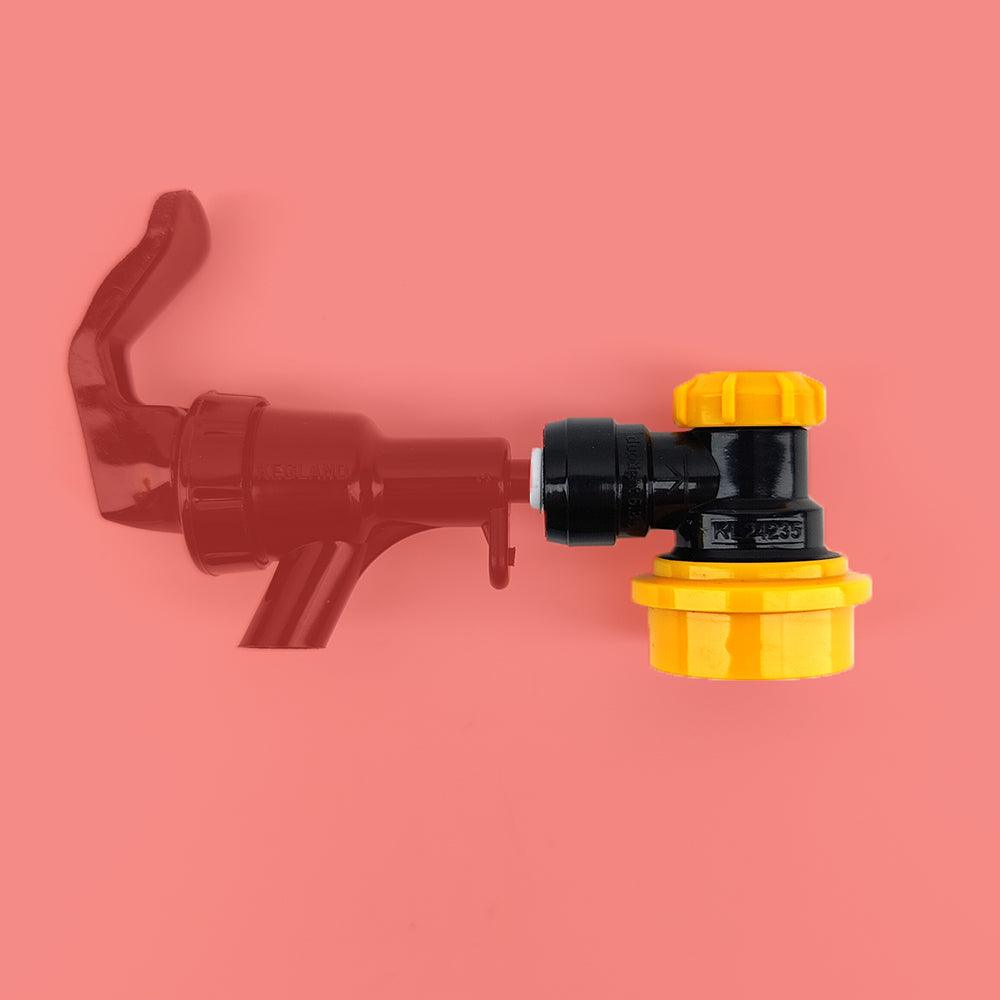

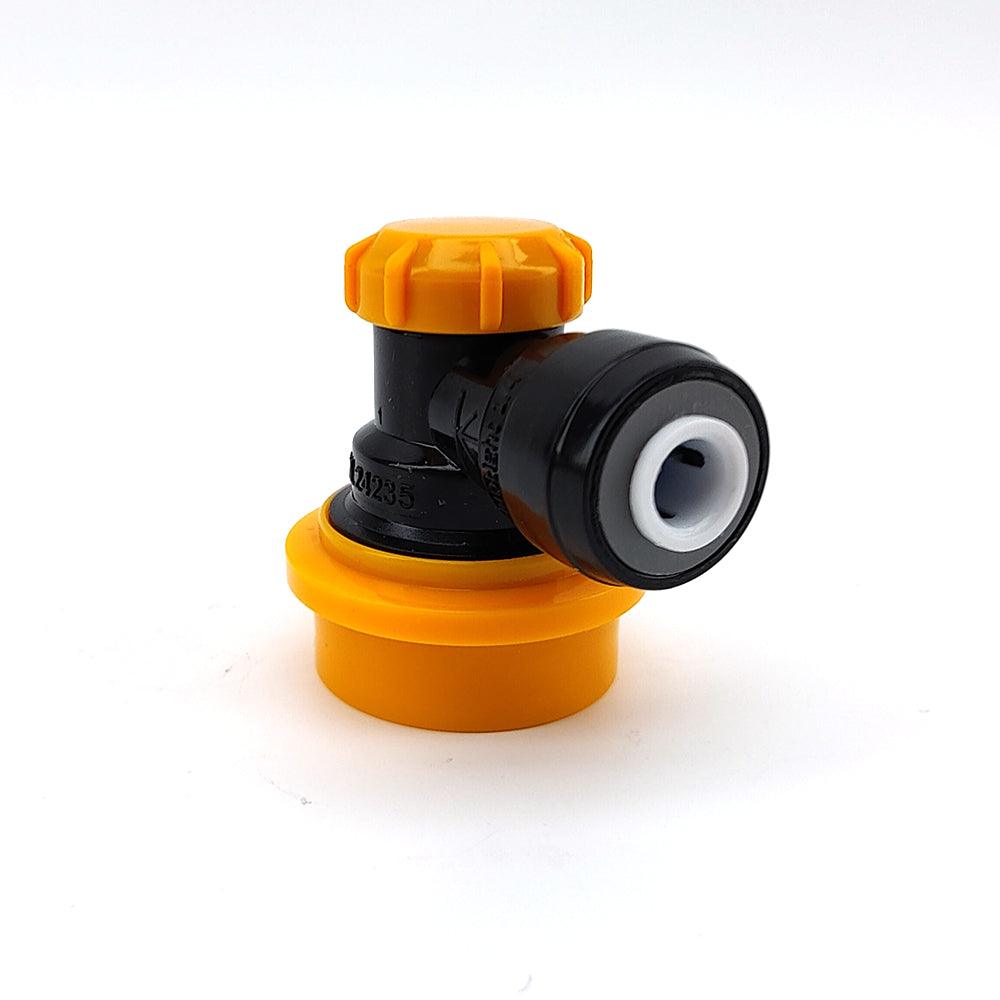

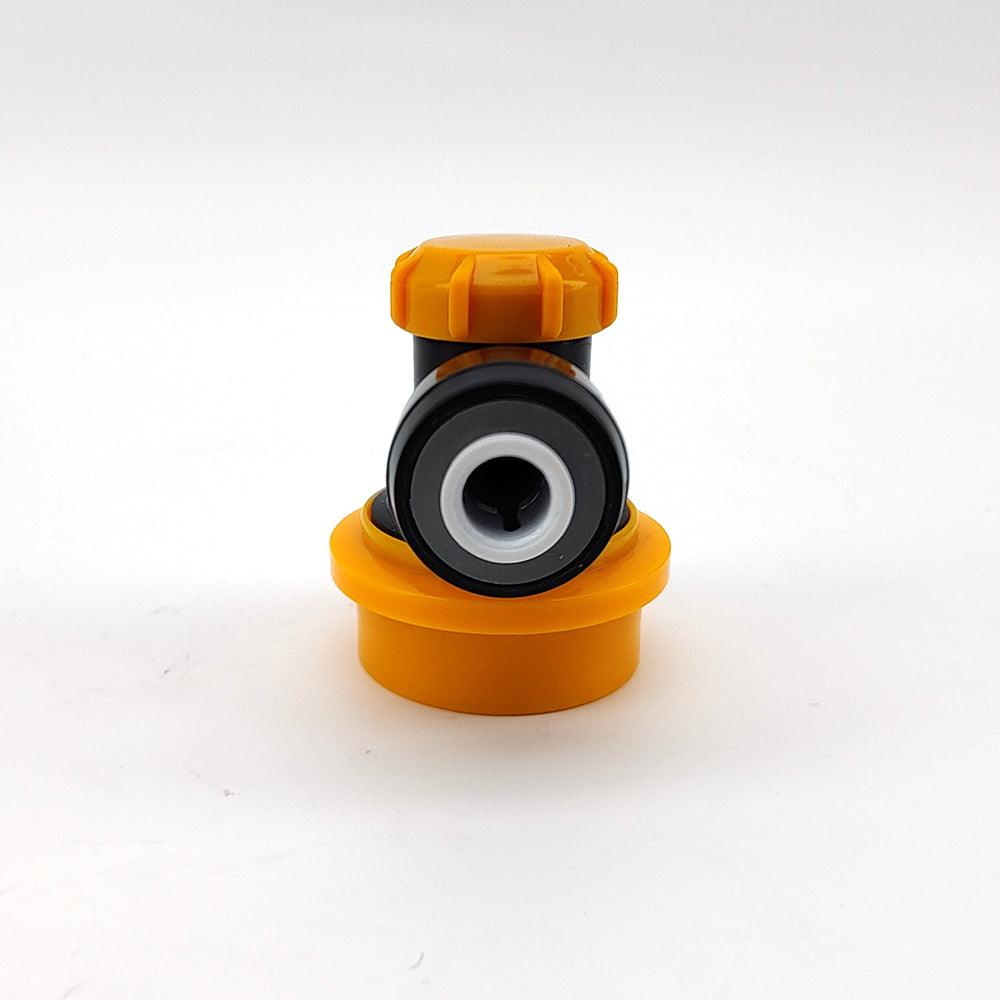

duotight 6.35mm (1/4) x Ball Lock Disconnect - (Black + Yellow Liquid)

duotight 8mm (5/16") x Ball Lock Disconnect (black + yellow liquid)

The humble plastic ball lock disconnects have been around a long time and are used by thousands of home brewers around the world.  Despite the extensive use they have seen little to no innovation for decades and KegLand wanted to change this.  As a result we have come out with the new duotight ball lock disconnect.

Some of the features include:

1. duotight push in
   These duotight ball lock disconnects already have the duotight fitting built into the ball lock disconnect. No need for additional threaded fittings. Simply push the beer/gas line in and you are done!
2. Compact
   The worlds most compact ball lock disconnect every manufactured. This new compact form factor is great for tight spaces or fridges where you want to pack as many kegs in as possible. This is the only ball lock disconnect that allows standard ball lock kegs to be double stacked while still connected to beer and gas lines.
3. Overmoulded Poppet
   The overmoulded poppet design means you can couple and disconnect this ball lock disconnect under extreme pressures of 150psi and will never have issues with the o-ring blowing out.
4. Tool-less Disassembly
   Other ball lock disconnects require a tool such as a flat head screw driver or spanner to take them apart for cleaning. The new caps on these allow for easy disassembly by hand, making these easier to break down for cleaning. It's literally never been easier to remove hop particles from your ball lock disconnects.
5. Extreme Chemical Resistance
   No cheap ABS plastic or nitrile seals. This ball lock disconnect is made from stainless spring and ball bearings, with an engineering polykeytone resin body, EPDM and PP/EPDM overmoulded poppet.  This makes this ball lock disconnect resistant to extreme chemicals such as phosphoric and acetic acid, caustic soda, peroxide and many other acid or base chemicals which are commonly used in homebrewing.
6. Toughness
   This ball lock disconnect is more robust than any other plastic ball lock disconnect ever manufactured due to the use of new engineering plastics. Don't be fooled by the small form factor - these bad boys are tough!
7. High Flow
   The internal design of these allows for faster flow meaning you can slightly quicker transfers when compared to other plastic ball lock disconnects.

duotight Swivel Elbow Sold Separately

If you are often pulling your beer and gas line sideways we recommend the use of the duotight male to female elbow as this allows your gas to swivel 360 degrees without making a kink in the beer/gas line. We have two different sizes available:
KL18456 duotight - 8mm (5/16”) Female x 8mm (5/16”) Male Elbow
KL18432 duotight - 9.5mm (3/8”) Female x 9.5mm (3/8”) Male Elbow

KegLand now manufactures several other duotight ball lock disconnects just like this one to suit several different beer/gas line sizes.  So for different beer and gas line use the following part numbers:
KL24235 duotight 6.5mm (1/4") x Ball Lock Disconnect - (Black-Yellow/Liquid)
KL24242 duotight 6.5mm (1/4") x Ball Lock Disconnect - (Grey-Red/Gas)
KL20749 duotight 8mm (5/16") x Ball Lock Disconnect - (Black-Yellow/Liquid)
KL20756 duotight 8mm (5/16") x Ball Lock Disconnect - (Grey-Red/Gas)
KL20763 duotight 9.5mm (3/8") x Ball Lock Disconnect - (Black-Yellow/Liquid)
KL20770 duotight 9.5mm (3/8") x Ball Lock Disconnect - (Grey-Red/Gas)
