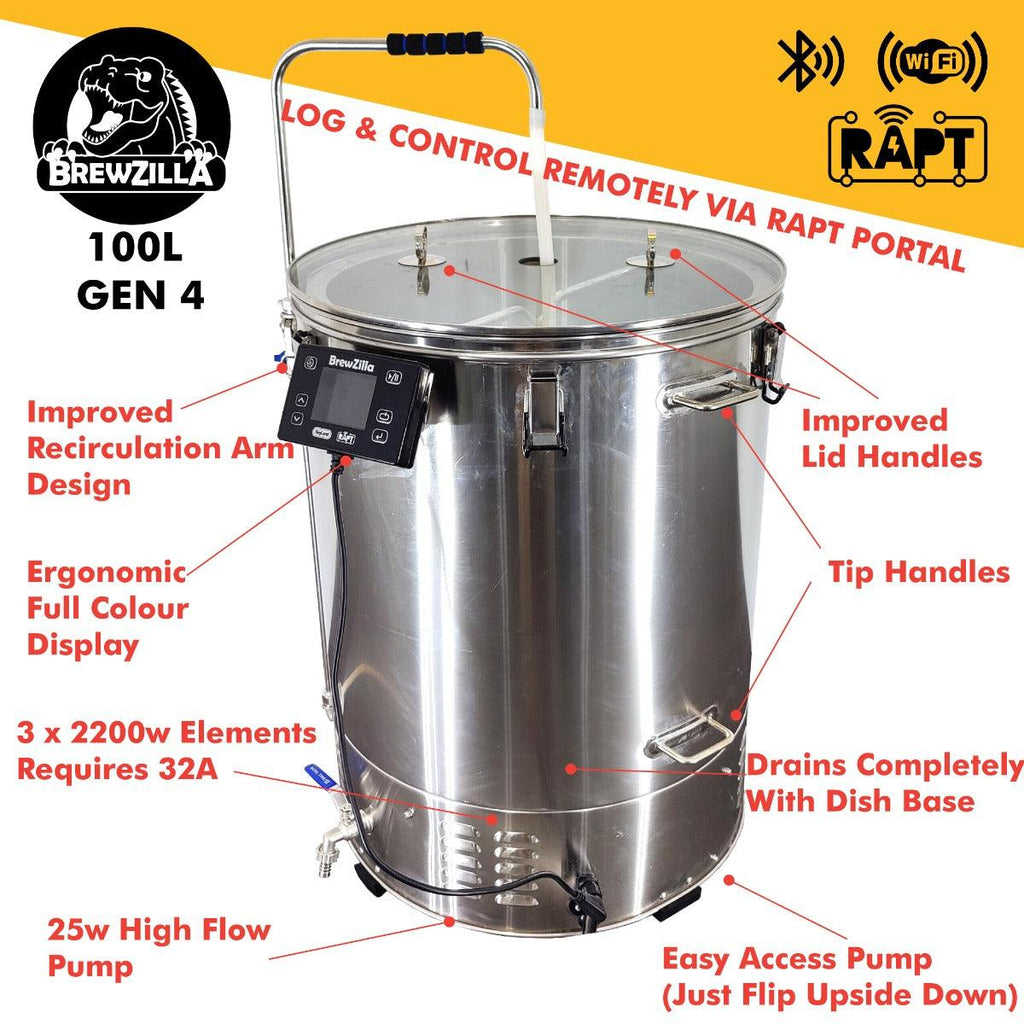

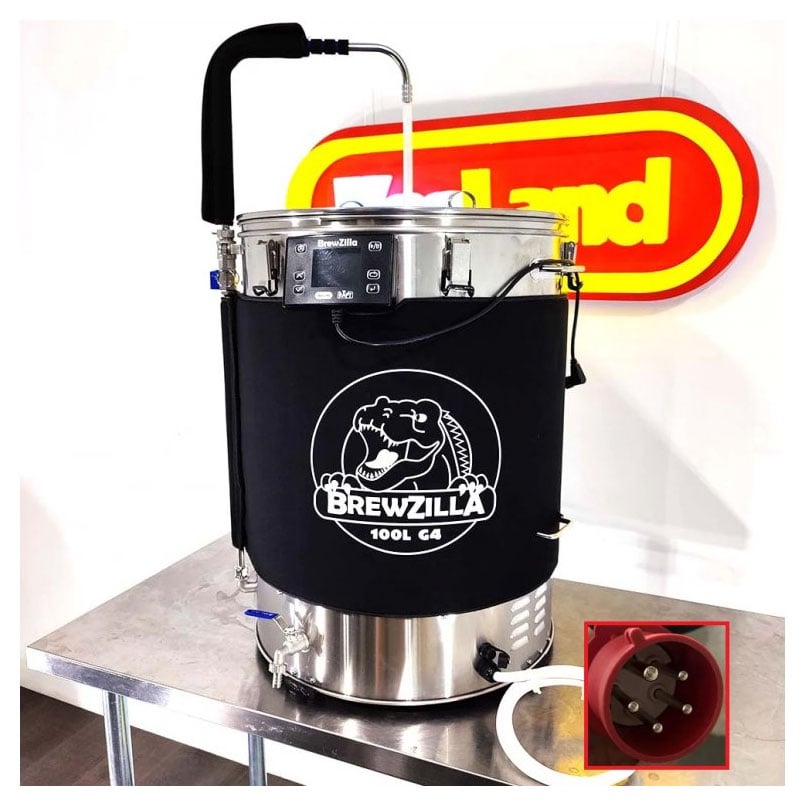

Gen 4.1 Brewzilla 100L with Pump - 6.6kw - 400V

The BrewZilla Gen 4 is designed to be a compact single vessel, double batch all grain home brewing system. The largest single vessel home brewery in the BrewZilla range, Powered by Three Phase electricity. Conversion can be made to single phase electricity too, as long as you have a neutral. There is a guide to this at the bottom of this listing in the product downloads section.
A complete turnkey system with a delay timing feature and step mash functionality. Built to make batches up to 90L, it is the biggest singel vessel brewery brough to you by KegLand. We do recommend to use a Lift'N'Lock Pulley with the 100L BrewZilla as the malt pipe can be quite heavy to the average user.

The Google Play Android App can be downloaded via the link below.
https://play.google.com/store/apps/details?id=io.rapt

"This app is a web mobile wrapper that allows you to browse the RAPT portal/website so that the website renders into a mobile device screen increasing usability on your device.  It also gives you the added functionality of push notifications to your mobile device."

Wifi / RAPT Integration:
The BrewZilla brewery type has been used across the world and won homebrew competitions in every country the brewery has been sold.  It's the most sold single vessel brewery worldwide and can be used for Home Brewing, Distillation, Preserve Canning, Sous Vide Cooking or just as a boiler. This unit can also double as a hot tub!

Some features that differentiate this brewery from other Brewery designs are:

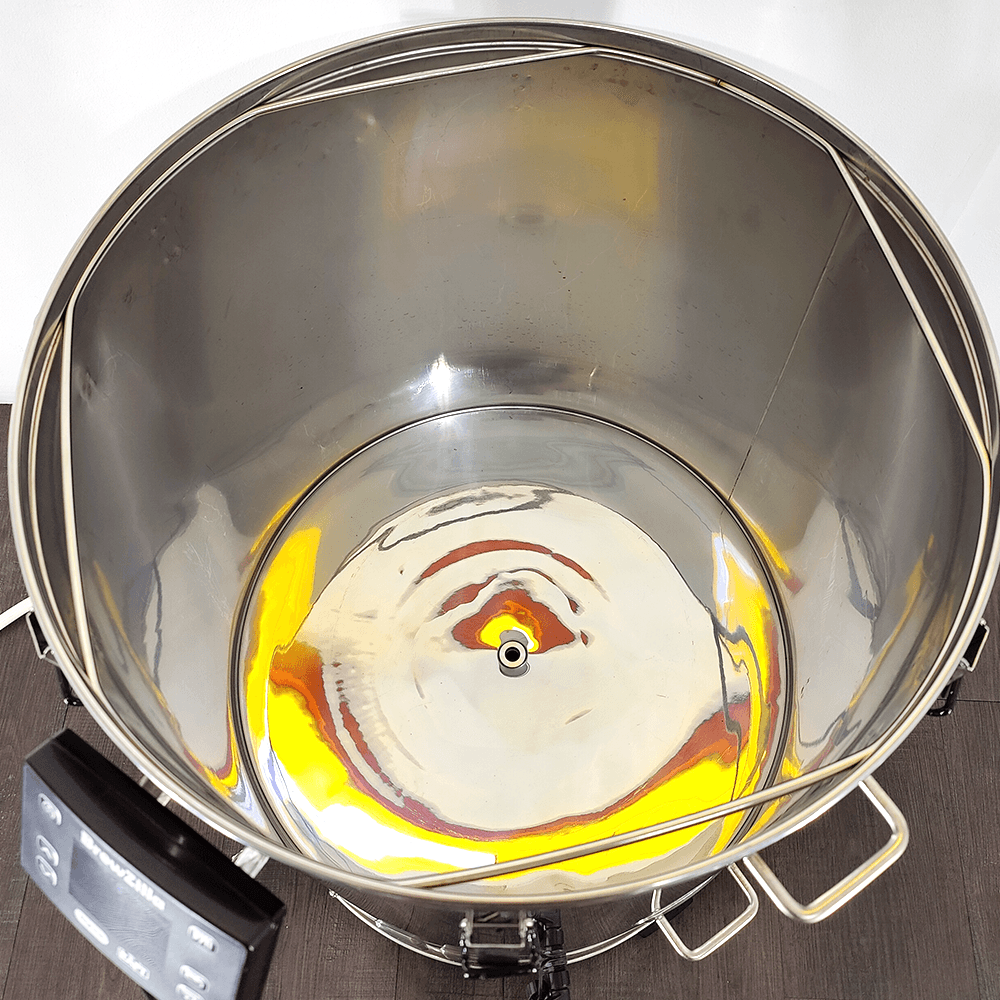

Complete Concave Draining Base:
The new base design completely drains out meaning you capture every single bit of wort. No longer do you need to tilt the brewery to extract every last bit of wort.  This also makes it suitable for CIP cleaning using our new Low Volume CIP Spray Rotor (KL04329).

PPSU Sight Glass Upgrade: (Standard in Gen 4.1 and later) With the transparent sight glass you'll be able to sparge with confidence to the exact pre boil level required.

Adjustable Clamps: Fitted as standard on Gen 4.1, and retrofittable on previous generations, these are designed with distillers in mind. The adjustable clamps make it easy to get enough tension on any distillation lid for a perfect seal every time! NOTE: Not to be used on included glass lld unless you love the sound of breaking glass.

False Bottom Pump Protection Screen:
One of the key features of all the BrewZilla single vessel units is the false bottom protection screen. This screen avoids the need for doing a whirlpool and it filters wort and prevents more than 95% of hops and hot break getting sucked into the pump and thus greatly reduces the blocked pump issues that are often an issue with other brewery designs.

Ultra Low Watt Density:
The BrewZilla has significantly lower watt density than other breweries.  The main benefit of lower watt densities is that it enables you to produce lighter colours of beers that would otherwise get some caramelisation.  The ultra-low watt density also means you have less chance of boilovers, you get less crud sticking to the element making cleaning easier and ultimately reduces wear and tear on the element meaning even with significant abuse your elements will last way longer.

Improved Base Design: The electronics are now housed in an accessible but sealed enclosure, allowing us to eliminate the bottom cover. This means fast and easy access to the pump for cleaning or re-plumbing if desired.

Larger, Two Stage Malt Pipe: The new malt pipe design is 30% larger making it easier to brew more beer or bigger beers or both! The new malt pipe has a two stage design allowing you to lift the malt pipe in easy stages before sparging. (Not available in all markets)

Heat Exchange Dish (HED): The HED is an upgradeable accessory for the BrewZilla Gen 4 range. This is deigned to sit underneath the false bottom of the BrewZilla. It forces wort to circulate around the elements and over the temperature probe during recirculation or when the pump is running. This assists with heat exchange, temperature accuracy and better thermal stability during the mash. The 100L BrewZilla comes with an HED as standard

RAPT Compatibility

The BrewZilla Gen 4 range is part of the RAPT ecosystem. Fully WiFi and Bluetooth* capable, the RAPT ecosystem allows for almost completely automated brew days. Using the RAPT Brew App, you can create powerful and complex automations for complex step mashing, time delayed brewing (set everything up at night and wake up to strike water at the perfect temperature).

Adding a RAPT Bluetooth Thermometer to the system allows for Bluetooth control of mash temperature directly from the grain bed! This simple to use, real time temperature control takes the guesswork out of mash temperature entirely – apart from lifting the malt pipe and adding hops, you can leave the BrewZilla Gen4 to handle the rest!

Specifications:
Diameter: 52cm Approx
Outside Height: 75cm Approx
Boiler Volume (brimful): 107L
Max Power: 6.6kw
Pump: 3.4m Max Head, 19/L Max Flow
Malt Pipe Volume: 72L
Dry Weight: 20kg

Warranty:
The 100L BrewZilla Gen 4 comes with a 2 year Warranty.

Some Other Accessories Worth Considering

Lift'N'Lock Pulley
BrewZilla Alcoengine Reflux Still
BrewZilla Alcoengine Pot Still
Mash Paddle
Low Volume CIP Cleaning Rotor
Refractometer
Counter Flow Wort Chiller

If you need a smaller or larger brewery, we carry a full range of BrewZilla sizes:

BrewZilla Gen 4 - 35L - Single Vessel Brewery
BrewZilla Gen 4 - 65L - Single Vessel Brewery
BrewZilla Gen 4 - 100L - Single Vessel Brewery
BrewZilla 200L - Three Vessel Brewery

The Heat Exanger is allready screwed on the false bottom!

Please note, there is no immersion chiller included with the Brewzilla, we recommend using the Read reaper (KL38355)

Blog Reviews:
Beersnobby.com - Hands On Review of BrewZilla Gen 4
