6 Tap TT Bar Brushed Stainless Font Kit (without Taps)

6 Tap TT Bar Brushed Stainless Font Kit (without Taps)

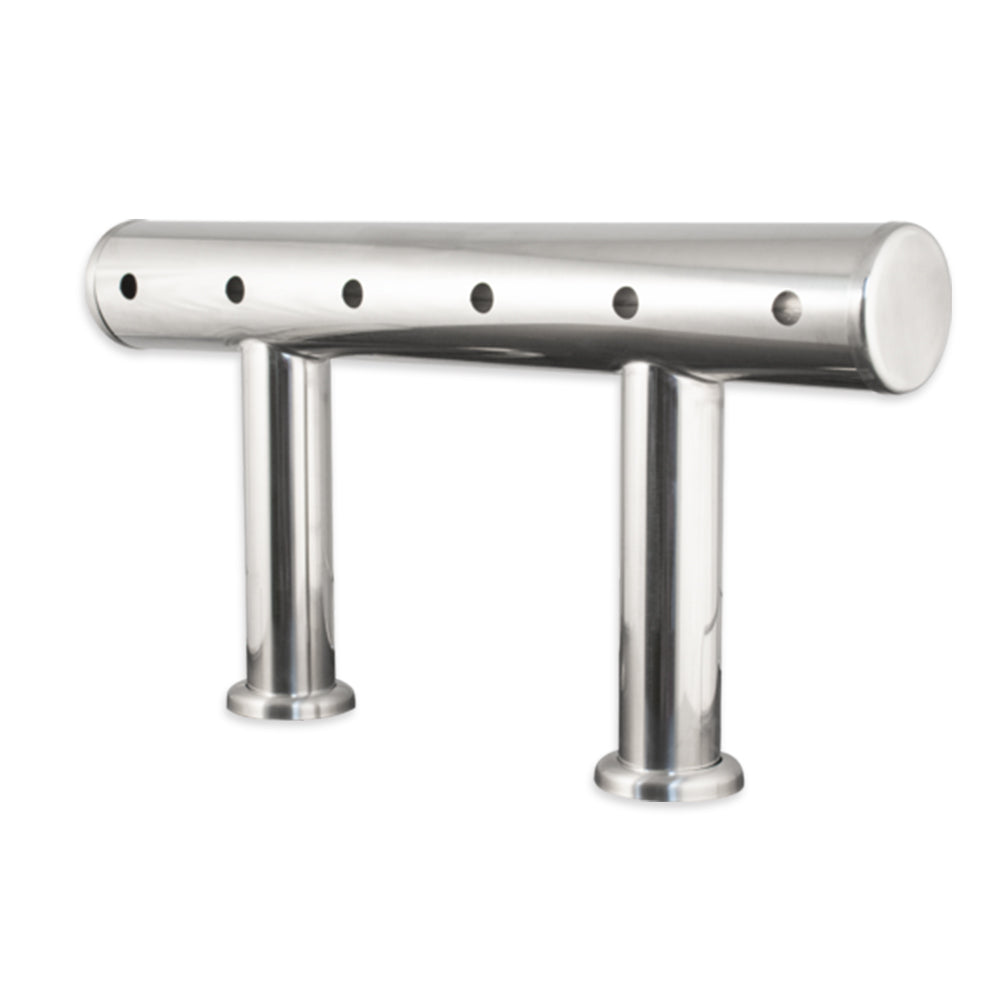

If you're building out a draft system that will have more than four faucets, we highly recommend the KegLand TT Bar Font. Available in 6-tap and 8-tap models, these fonts provide ample room for your NukaTaps and will give your draft setup a much cleaner look than having multiple single-column fonts.

Mounting hardware, tower collars and gaskets included.

Note; The tower does not include taps, shanks, tap handles, or hosing.

Assembly

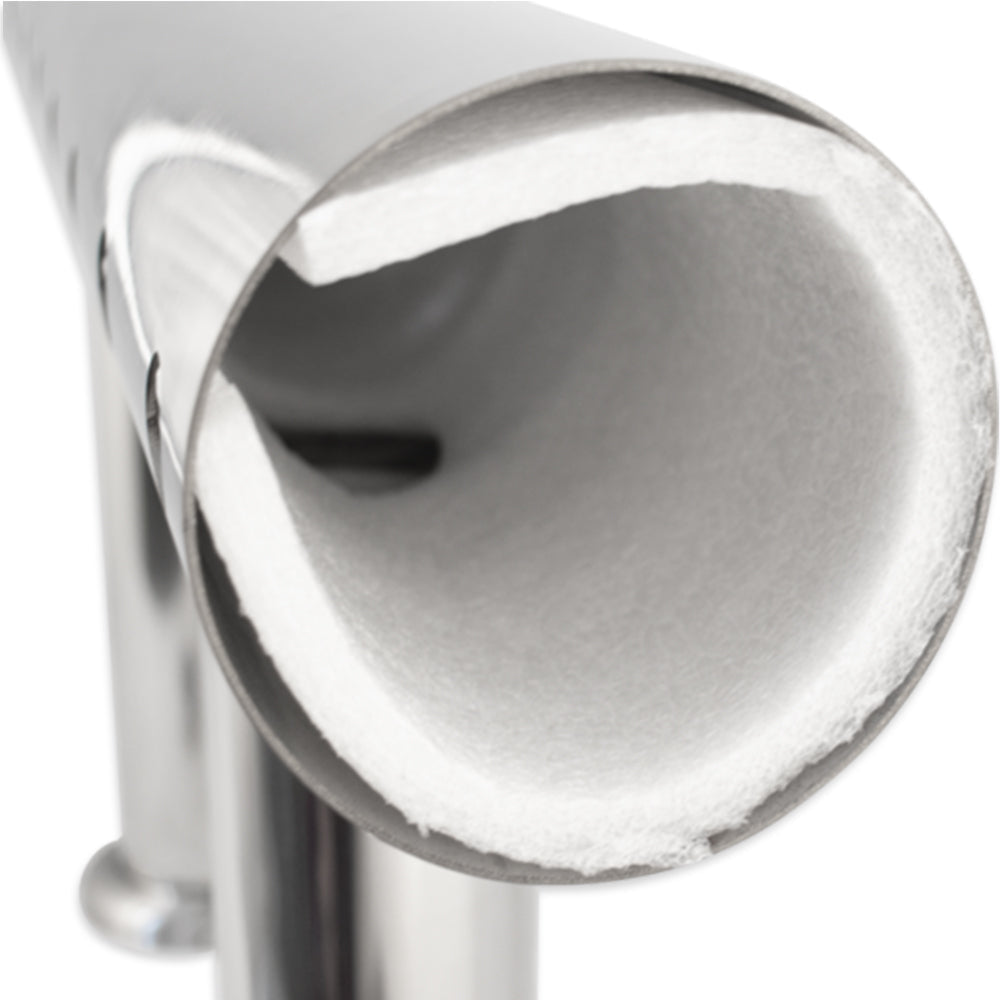

To assemble the tower, remove the dust caps on either side and remove the foam insulation. Start with the inner most shank hole on either side and work your way outward. We recommend installing each shank and attaching the draft tubing before moving on to the next shank hole. The top section of the tower is 5" in diameter, so most people should be able to reach inside to install the shanks by hand or with the help of a draft wrench. When all the shanks have been mounted, reinsert the foam insulation. The tower may come with more insulation than needed and may need to be cut thinner before reinserting.

Duotight Compatible Tap Shanks
We highly recommend pairing the draft tower with KL01137 NukaTap Tap Shanks with Duotight Compatible Barb. When it comes to assembly, there's nothing easier than Duotight push-to-connect fittings, and the same goes for whenever you might need to disassemble a line for cleaning. Duotight fittings pair perfectly with EVABarrier draft tubing, our preferred beer & gas tubing that offers superior protection from oxidation, CO2 loss, and microbial growth.

Tower Dimensions: 750mm L x 127mm (5") D x 406mm H. The centers of the columns are approximately 406mm apart.
