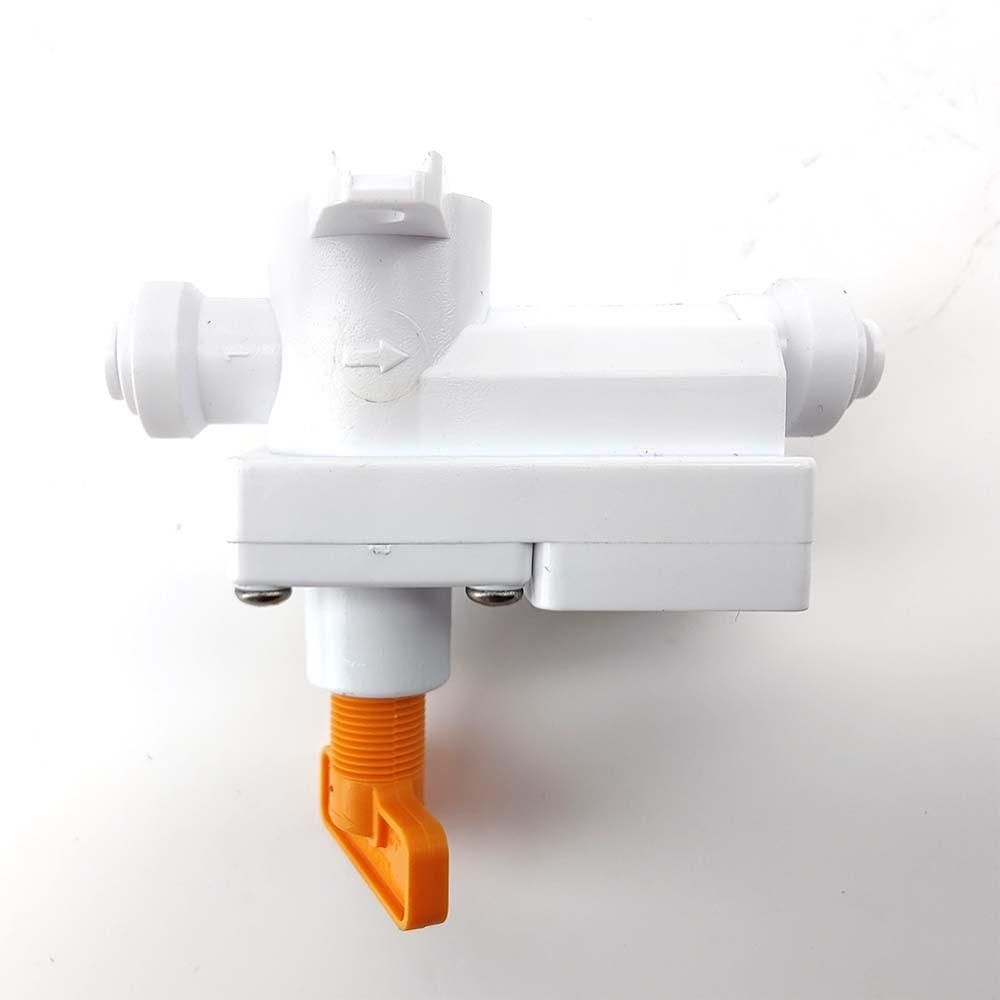

6.35mm duotight - Inline Regulator with integrated gauge 0-150psi (1/4')

6.35mm duotight - Inline Regulator with integrated gauge 0-150psi (1/4')

These compact inline regulators have been designed to suit 6.35mm (1/4") Evabarrier Tubing.  For higher pressures such as mains water supply we recommend the 3mm x 6.35mm EVABarrier hosing.

Suits pressures 0-150psi. If you would like to run lower pressure with more accuracy, we would suggest getting the digital gauge.

Suitable for mains water pressure

Suitable for liquid or gas

Made from Acetal/POM, EPDM o-rings and stainless teeth

Suits 6.35mm (1/4) OD Tubing such as our Evabarrier Tubing or PE Water Line.

Includes integrated 0-150psi Pressure Gauge

duotight Inline In Line Regulator - with integrated gauge for water or gas - 6.35mm (1/4" Push In)

This awesome compact solution for adjusting water and gas pressure can be useful in many different applications.  This can be used for compressed air, CO2, nitrogen, mains water supply and many other things.

The unit is made from food grade engineering plastic, stainless steel and quality made EPDM seals.

The design utilizes the reliability of the KegLand patented duotight o-ring system to make sure you can fit hoses to this unit quickly and with leak free connections.

NOTE: These small guages enable the regulator to be so compact however for more accurate pressures readings we recommend getting different guages to suit the pressure range you want to use.

KL14984 - Mini Gauge 0-23psi
KL14991 - Mini Gauge 0-30psi
KL15004 - Mini Gauge 0-60psi
Mini Gauge 0-150psi (this one comes included and already installed to the regulator. not sold otherwise)

These guages are accurate to about 10% of the range of the pressure gauge.  So if you use the lowest range possible it will ensure the best possible accuracy.

If you are looking for a compact digital gauge with backlight illumination click here.

IMPORTANT WARNING: Do not exceed gauge pressure.  If you set a gauge pressure higher than the graduations on the gauge you can damage the gauge.  (ie if you are using the 0-60psi gauge. Do not set pressure above 150psi or damage to the gauge may occur. This will be very difficult to do as mains water in Australia is around the 100psi mark.

To see how this regulator can be setup and used see this video here:

Below is a video by Martin Keen who has a great channel called "The Homebrew Challenge". He shows how he has set up inline regulators to regulate keg pressures in his keg fridge setup:

If you would like to upgrade to the digital gauge please watch this video below:
