Gas Line Manifold Splitter 4 ways (1/4inch, 6mm Barb)

Gas Line Manifold Splitter 4 ways (1/4inch, 6mm Barb)

These gas manifolds are rated to 100psi and include ball valves that screw into the aluminium extrusion with 1/4inch threads.

This is an easy and convenient way to split your single gas line into multiple gas lines.

NOTE: This product is not suitable for beer or other beverages. It's gas only.

These gas manifolds are rated to 100psi and include 4 gas line outputs and 4 x 1/4inch ball vales.

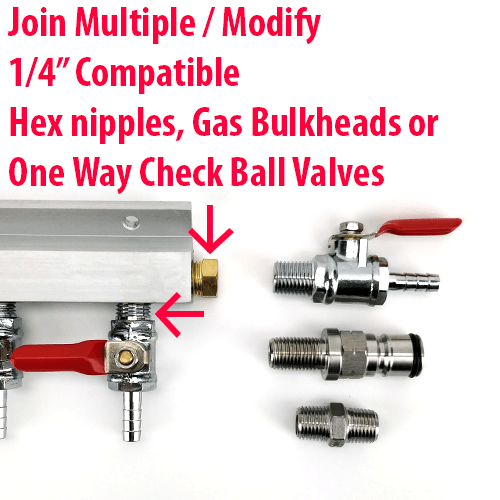

This unit can be turned into a 5way manifold by adding a 1/4 inch ball valve (part KL03179) as shown in the picture to the left.

You can also attach a Gas Ball Lock Post with 1/4 Inch Bulkhead Assembly (part KL03179) if you want to be able to easily disconnect/reconnect a gas line. Alternatively you can also fit the Duotight 8mm to 1/4" push in fittings to this manifold KL06897.

Please note that due to the check valve mechanism there is about a 2 psi pressure drop over the ball valves in these manifolds. You will need to set the pressure on the regulator about 2 psi higher than the desired pressure in the keg.
